Split Core Digital Single Phase AC Power Transducer GS-AG1C1-GxPD

Product Details:

Dimension (L*W*H) 83*100*36 Millimeter (mm)
Usage measuring multi-parameters
Material ABS (flame retardancy)
Product Type digital DC power transducer
Application measuring multi-parameters
Output Digital Sensor
Type Digital AC Power Transducer
Share Your Product:

89 INR/Unit

Get a Price/Quote

Request To Call Back Send Inquiry

Split Core Digital Single Phase AC Power Transducer GS-AG1C1-GxPD Price And Quantity

Price 89 INR/Unit
Minimum Order Quantity 1 Unit

Split Core Digital Single Phase AC Power Transducer GS-AG1C1-GxPD Product Specifications

Dimension (L*W*H) 83*100*36 Millimeter (mm)
Type Digital AC Power Transducer
Accuracy 0.5 %
Operating Temperature -20-60 Celsius (oC)
Application measuring multi-parameters
Output Digital Sensor
Product Type digital DC power transducer
Material ABS (flame retardancy)
Usage measuring multi-parameters

Split Core Digital Single Phase AC Power Transducer GS-AG1C1-GxPD Trade Information

FOB Port Shenzhen
Payment Terms Letter of Credit at Sight (Sight L/C) Western Union Paypal Telegraphic Transfer (T/T)
Supply Ability 50000 Unit Per Month
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Western Europe Australia Eastern Europe Middle East Central America South America Asia North America Africa
Main Domestic Market All India
Certifications CE, ROHS, ISO

Product Description

Split Core Digital Single Phase AC Power Transducer with RS485 Output Model:GS-AG1C1-GxPD

Overview

GS-AG1C1-GxPD series is a split core digital AC power transducer with RS485 output.This digital power transducer is designed to be split core for convenient monitoring of electrical power systems. This split core designs make it possible to install the device without stopping running the equipment and it can measure voltage current active power reactive powerapparent power power factorfrequency and energy in the electric power system and these measured data can be streamed over an RS485 interface to PLC or other data acquisiton devices. With the advanced MCU and precisive 24-digit AD Converter in-built this digital transducer has the advantages of high precision and superior performance.

Accuracy:0.2%;

Input range:Voltage:0-1000V DC, Current:0-1000A DC

Output:RS485

Power supply:12V DC, 15V DC, 85-265V AC/DC;

For more details of this transducer please visit out website

http://syncmeter.com/products/Digital_Power_Transducer/Single_Phase/175.html

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Digital AC Power Transducer' category

Digital Single Phase AC Power Transducer with RS485 Output GS-AG1C1-GxEC Minimum Order Quantity : 1 Application : measuring voltage, current, active power,reactive power, power factor,energy Product Type : Digital Power transducer Usage : measuring voltage, current, active power,reactive power, power factor,energy Type : Digital AC Power Transducer Accuracy : 0.5 % Dimension (L*W*H) : 116*25*87 Millimeter (mm) Output : Digital Sensor

Send Inquiry

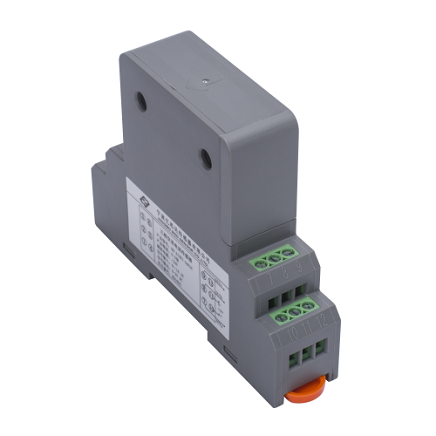

Digital 3Phase 3Wire AC Power Transducer with RS485 Output GS-AG3C1-GxEC Minimum Order Quantity : 1 Application : measuring voltage, current, active power, reactive power ,energy,power factor Product Type : Digital 3Phase 3wire AC Power Transducer Usage : measuring voltage, current, active power, reactive power ,energy,power factor Type : Digital 3Phase 3wire AC Power Transducer Accuracy : 0.5 % Operating Temperature : 2060 Celsius (oC) Output : Digital Sensor
