Split Core Digital DC Current Transducer with RS485 Output, GS-DI1B0-GxPD

Product Details:

Product Type Digital DC Current Transducer
Application measuring DC Current
Usage measuring DC Current
Dimension(L*W*H) 100*83*36
Output Digital Sensor
Theory Current Sensor
Type Digital DC Current Transducer
Share Your Product:

Get a Price/Quote

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Unit

Product Specifications

Dimension(L*W*H) 100*83*36
Usage measuring DC Current
Application measuring DC Current
Output Digital Sensor
Type Digital DC Current Transducer
Accuracy 1.0 %
Product Type Digital DC Current Transducer
Operating Temperature -20-60 Celsius (oC)
Theory Current Sensor

Trade Information

FOB Port Shenzhen
Payment Terms Letter of Credit at Sight (Sight L/C), Western Union, Paypal, Telegraphic Transfer (T/T)
Supply Ability 50000 Unit Per Month
Delivery Time 2-3 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Western Europe, Asia, Australia, Eastern Europe, Middle East, Central America, South America, North America, Africa
Main Domestic Market All India
Certifications CE, ROHS, ISO

Product Description

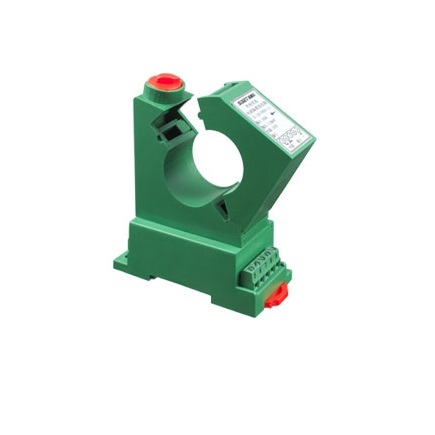

Split Core Digital Single Phase DC Current Transducer with RS485 Output, Model:GS-DI1CB0-GxPD

Overview

GS-DI1B0-GxPD series is a Split core digital single phase DC Current transducer with RS485 output, designed to measure DC current ranging from 10A to 1000A. The split core design makes it very convenient to install the device without stopping the running of equipment. It can detect the input current flowing in a live wire,convert it and then generate RS485 signal,supporting Modbus-RTU.With the advanced MCU and precisive 24-digit A/D Converter inbuilt, this transducer has the advantage of high precision and superior performance. The transducer can be connected to PLC or data acquisition devices for the purpose of monitoring and control.

Accuracy:1.0%;

Input range:DC 10Aï½ž1000A;

Output:RS485

Power supply:DC 12V 24V;

For more details of this transducer please visit out website

http://syncmeter.com/products/Digital_DC_Current_Transducer/193.html

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Digital DC Current Transducer' category

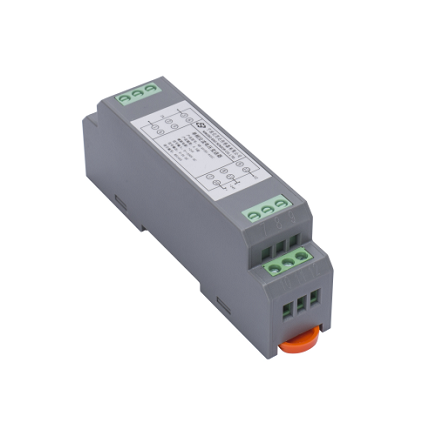

Digital DC Current Transducer with RS485 Output GS-DI1B0-GxSB Dimension(L*W*H) : 116*25*42 Millimeter (mm) Application : measuring DC Current Output : Digital Sensor Type : Digital DC Current Transducer Material : ABS (flame retardancy) Product Type : Digital DC Current Transducer Theory : Current Sensor Minimum Order Quantity : 1 Usage : Measuring DC Current Accuracy : 0.2 % Operating Temperature : 2060 Celsius (oC)
