Single Phase AC Voltage Tracing Transducer GS-AV1B6-AxSC

Single Phase AC Voltage Tracing Transducer GS-AV1B6-AxSC

Product Details:

X

Price And Quantity

  • 1 Unit

Product Description

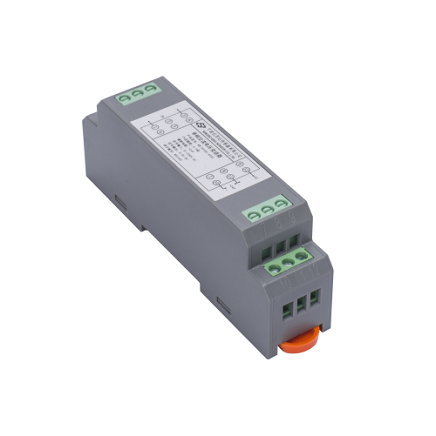

Single Phase AC Voltage Tracing Transducer  Model:GS-AV1B6-AxSC


Overview:

  GS-AV1B6-AxSC series is an AC voltage tracing transducer that measures the AC voltage in a wire,and then generates the signal 0-5V AC which is proportional to the measured input  voltage. The measuring range is 20-1000V AC; The advantage of this AC voltage transducer is its fast response time which is less than 1mS. It is designed for instant data acquisitions or applications requiring to trace the input voltage in real time.


Accuracy:0.5

Input range:20-1000V AC;

Output:0-5V AC;

Power supply:12V DC 24V DC;

For more details of this transducer please visit out website

https://syncmeter.com/products/Signal_Tracing_Transducer/AC_Voltage_Trac/105.html


GIANTLION SENSOR CO.,LTD
