Digital Bi-directional DC Power Transducer with RS485 Output GS-DP1B4-GxKD

Digital Bi-directional DC Power Transducer with RS485 Output GS-DP1B4-GxKD

Product Details:

  • Dimension(L*W*H) 116*25*87 Millimeter (mm)
  • Usage measuring voltage, current, power factor,active power,reactive power,energy
  • Application measuring voltage, current, power factor,active power,reactive power,energy
  • Product Type Bidirectional DC Power Transducer
  • Output Digital Sensor
  • Type Bidirectional DC Power Transducer
  • Accuracy 0.5 %
  • Supply Ability : 50000 Unit Per Month
X

Price And Quantity

  • 1 Unit

Product Specifications

  • Bidirectional DC Power Transducer
  • 116*25*87 Millimeter (mm)
  • measuring voltage, current, power factor,active power,reactive power,energy
  • Bidirectional DC Power Transducer
  • measuring voltage, current, power factor,active power,reactive power,energy
  • 0.5 %
  • Digital Sensor
  • -20-60 Celsius (oC)

Trade Information

  • Shenzhen
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • 50000 Unit Per Month
  • 2-3 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

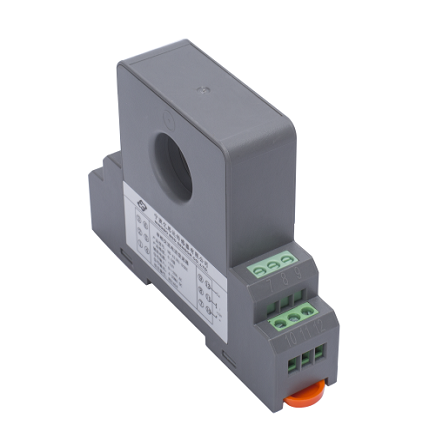

Digital Bidirectional DC Power Transducer with RS485 Output,   Model:GS-DP1B4-GxKD


Overview:

   GS-DP1B4-GxKD series is a Bidirectional DC power transducer with RS485 output which is designed for bidirectionally monitoring of  DC electrical power systems. This digita bidirectionall power transducer can measure voltage, current, power and energy in the electric power system and these measured data can be streamed over an RS485 interface to  PLC or other data acquisiton devices.


   The advantage of this split core transducer is that it can be conviently installed without stopping the running of equipment.


Accuracy:Voltage accuracy: 0.2; Current accuracy:1.0; Power accuracy:1.0;

Input range:Voltage:±75mV~±1000V DC,currnt:±5A~±600A DC

Output:RS485

Power supply:12V DC, 24V DC;

For more details of this transducer please visit out website

http://syncmeter.com/products/Digital_DC_Power_Transducer/194.html
