AC Current Transducer

We are offering the high quality AC current transducer that is meant for use in various electrical applications. It is suited for use in various places like houses, commercial complexes and other places. The current Transducer is very efficient and is highly powerful. The high quality transducer is made for a long service life. The offered AC Current transducer is made available in various types, sizes, designs and has different specifications. The transducer is made available in various types like the Three Phase Current Transducer, Split Core 1-Phase AC Current Transducer and many others for an high end performance.

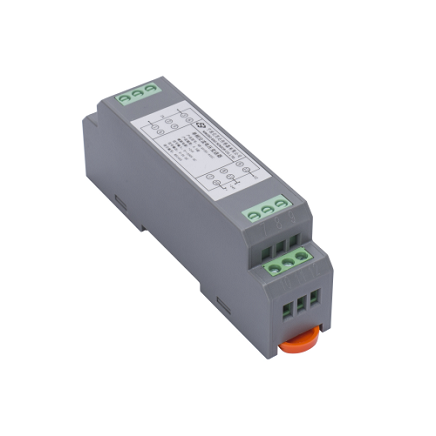

Product Image (GS-AI1B2-D4SC)

2-Wire Single Phase AC Current Transducer GS-AI1B2-D4SC

Price: US$49/Unit

GS-AI1B2-D4SC series is two wire single phase AC current transducer which adopts 24V DC as power supplyand outputs signal 4-20mA DC; This model measures current range AC 1-10A and the current input methold is by wiring terminal block.

Product Image (GS-AI1B2-D4KC)

Single Phase 2Wire AC Current Transducer GS-AI1B2-D4KC

Price: US$56/Unit

GS-AI1B2-D4KC series is two wire single phase AC current transducer which adopts 24V DC as power supply,and outputs signal 4-20mA DC; 2Wire AC current transducer needs only connect 2 wires, so less wiring is against wiring errors, and also it can save costs; Another advantage of 2wire transducer is that it has better EMC protection,since interferences can be filtered more easily. If you need 2wire AC current transducer and measuring range is over 30A AC, you can select this model and for measuring range under 30A AC, you can select our model GS-AI1B2-D4EC.

Product Image (GS-AI1B2-D4EC)

2Wire Single Phase AC Current Transducer Model GS-AI1B2-D4EC

Price: US$49/Unit

GS-AI1B2-D4EC series is two wire single phase AC current transducer which adopts 24V DC as power supplyand outputs signal 4-20mA DC; 2Wire AC current transducer needs only connect 2 wires so less wiring is against wiring errors and also it can save costs; Another advantage of 2wire transducer is that it has better EMC protectionsince interferences can be filtered more easily. If you need 2wire AC current transducer and measuring range is under 30A AC you can select this model and for measuring range over 30A AC you can select our model GS-AI1B2-xxKC.

Product Image (GS-AI2B1-xxMC)

2 Phase AC Current Transducer Model:GS-AI2B1-xxMC

Price: US$59/Unit

GS-AI2B1-xxMC series is 2 phase AC current transducer and the current input methold is by wiring terminal blocks.It is designed to measure two channels of AC current by wiring the terminal blocks. Model GS-AI2B1-xxMC is a double isolation transducer.It means that inside the transducer both the input and output are electromagnetically isolated from power supply. The measuring range is 1-10A AC;

Product Image (GS-AI2B1-xxEC)

2 Phase AC Current Transducer Model:GS-AI2B1-xxEC

Price: US$59/Volt

GS-AI2B1-xxEC series is 2phase AC current transducer,designed for a quick and easy installation. It is used to measure 2 channels of AC current less than 30A. To measure the current of a live wire in electrical system, you just thread the live wire through the sensing window (apertures) and reconnect on the other side.Both the input and output are electromagnetically isolated from power supply.

Product Image (GS-AI1B1-xxPC)

Split Core Single Phase AC Current Transducer GS-AI1B1-xxPC

Price: US$59/Volt

GS-AI1B1-xxPC series is a split core single phase AC current transducer.he advantage of this model is that transducer can be installed conveniently without stopping running the equipment.The measuring range can be up to 1000A AC;

Product Image (GS-AI1B1-xxKC)

Single Phase AC Current Transducer Model GS-AI1B1-xxKC

Price: US$56/Volt

GS-AI1B1-xxKC series is single phase AC current transducer,designed for a quick and easy installation.If the AC current you need to measure is over 30A but lower than 500A,you can choose this model. To measure the current of a live wire in electrical system, you just thread the live wire through the sensing window (apertures) and reconnect on the other side.Inside the transducer,both the input and output are electromagnetically isolated from power supply.

Product Image (GS-AI1B1-xxEC)

Single Phase AC Current Transducer Model:GS-AI1B1-xxEC

Price: US$49/Unit

GS-AI1B1-xxEC series is single phase AC current transducer,designed for a quick and easy installation. To measure the current of a live wire in electrical system, you just thread the live wire through the sensing window (apertures) and reconnect on the other side.Both the input and output are electromagnetically isolated from power supply. The current input is by hole-thru.The measuring range is 1-30A AC;

Product Image (GS-AI1B1-xxSC)

Single Phase AC Current Transducer Model GS-AI1B1-xxSC

Price: US$49/Unit

GS-AI1B1-xxSC series is single phase AC current transducer. The current input methold is by wiring terminal blocks,instead of hole-thru measuring methold. This model is designed to satisfy some users whose system needs to measure the current by connecting the live wire in the electrical system to the current transuducer.The input and output are electromagnetically isolated from power supply.The measuring range is 0-10A AC;and the accuracy can be 0.2% or 0.5%;

Product Image (GS-AI3B1-xxMC)

3 Phase AC Current Transducer Model:GS-AI3B1-xxMC

Price: US$69/Unit

GS-AI3B1-xxMC series is 3phase AC current transducer and the current input methold is by wiring terminal blocks.It is designed to measure three channels of AC current by wiring the terminal blocks. If you need to measure three channels of AC current and the AC current is not over 10A you can choose this model. The difference between this model GS-AI3B1-xxMC and model GS-AI3C1-x9MC lies ONLY on the power supply.this model GS-AI3B1-xxMC only works with power supply of 12V DC15V DC or 24V DC; Model GS-AI3B1-xxMC is a double isolation transducer,which means that,inside the transducer,both the input and output are electromagnetically isolated from power supply. The measuring range is 1-10A AC;

Product Image (GS-AI3B1-xxEC)

3 Phase AC Current Transducer Model GS-AI3B1-xxEC

Price: US$69/Volt

GS-AI3B1-xxEC series is 3phase AC current transducer,designed for a quick and easy installation. It is used to measure 3 channels of AC current less than 30A. To measure the current of a live wire in electrical system, you just thread the live wire through the sensing window (apertures) and reconnect on the other side.Both the input and output are electromagnetically isolated from power supply.
